| 正確さ: | 0.1Ph、±5mV | 適用温度範囲: | 5～70℃ |
|---|---|---|---|
| プローブの種類: | プラチナ針 | 範囲: | 0~+1500mv |
| 電極電位: | 245～270mV(15～30°) | 内部抵抗: | ≤10kΩ |
| 電極の安定性: | ±8mV/24 | 電極インジケーター: | 良好な伝導性 |
| 材料: | パソコン | 電極の長さ: | 約70cm / 27.5インチ |
| 電極サイズ: | 155 * 20 * 20mm / 6.1 * 0.8 * 0.8インチ | 電極重量: | 約49.6g / 1.8オンス |
| パッケージサイズ: | 18 * 4.5 * 2.3cm / 7.1 * 1.8 * 0.9インチ | パッケージの重量: | 約75g / 2.6オンス |
| コネクタの種類: | BNC Q9 | ||
| ハイライト: | Platinum Needle ORP Probe,BNC Q9 Connector ORP Electrode,0~+1500mv Range Oxidation-Reduction Potential Probe |
||

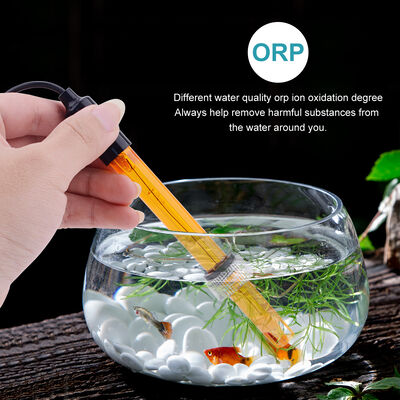

Professional ORP electrode probe designed for measuring oxidation-reduction potential in aquariums, hydroponic systems, laboratories, and various water quality applications. Features a BNC Q9 connector for compatibility with most ORP meters and controllers.
This combined electrode consists of a platinum needle indicating electrode and silver-chlorinated silver reference electrode. It serves as the measuring element for ORP meters and water quality testers, providing accurate oxidation-reduction potential measurements in aqueous solutions.
| Material | PC |
| Model Type | ORP-101 Laboratory Electrode Probe |
| Sensitive Element | Crystal Ball Bubble |
| Measurement Range | 0 to ±1999mV |
| Accuracy | ±5mV |
| Temperature Range | 5 to 70℃ |
| Electrode Potential | 245-270mV (15-30℃) |
| Reference Electrode Internal Resistance | ≤10kΩ |
| Electrode Stability | ±8mV/24h |
| Indicator Electrode | Good Conduction |
| Connector Type | Q9 BNC Upright |
| Cable Length | Approx. 70cm / 27.5in |

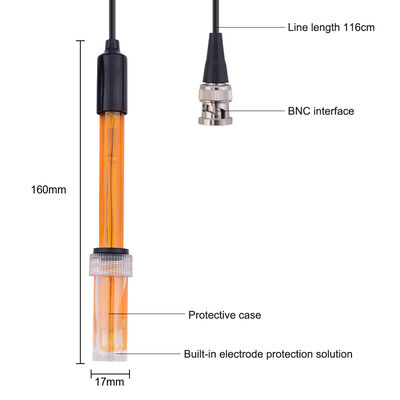

| Electrode Dimensions | 155 × 20 × 20mm / 6.1 × 0.8 × 0.8in |
| Electrode Weight | Approx. 49.6g / 1.8oz |
| Package Dimensions | 18 × 4.5 × 2.3cm / 7.1 × 1.8 × 0.9in |
| Package Weight | Approx. 75g / 2.6oz |
